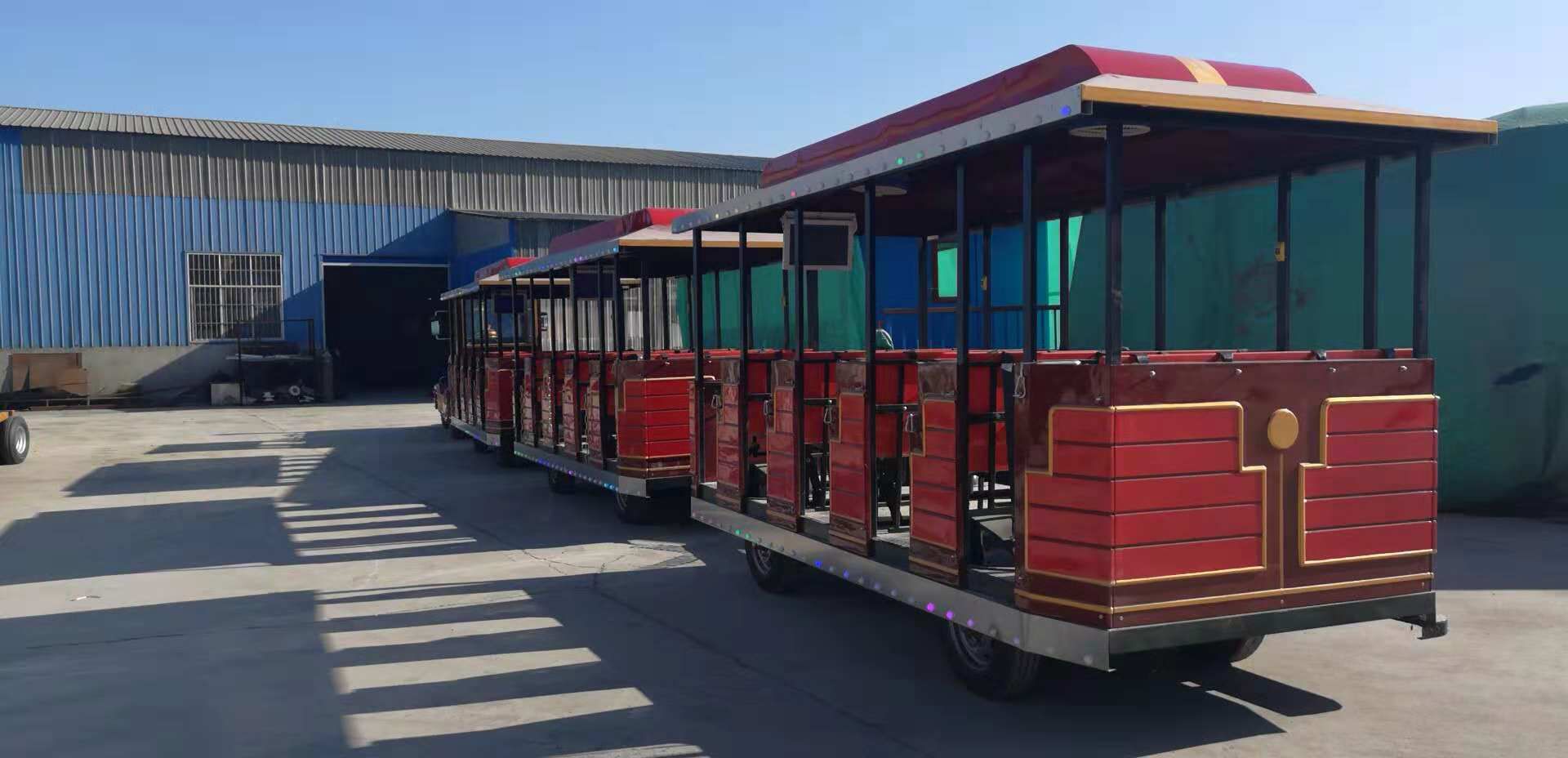

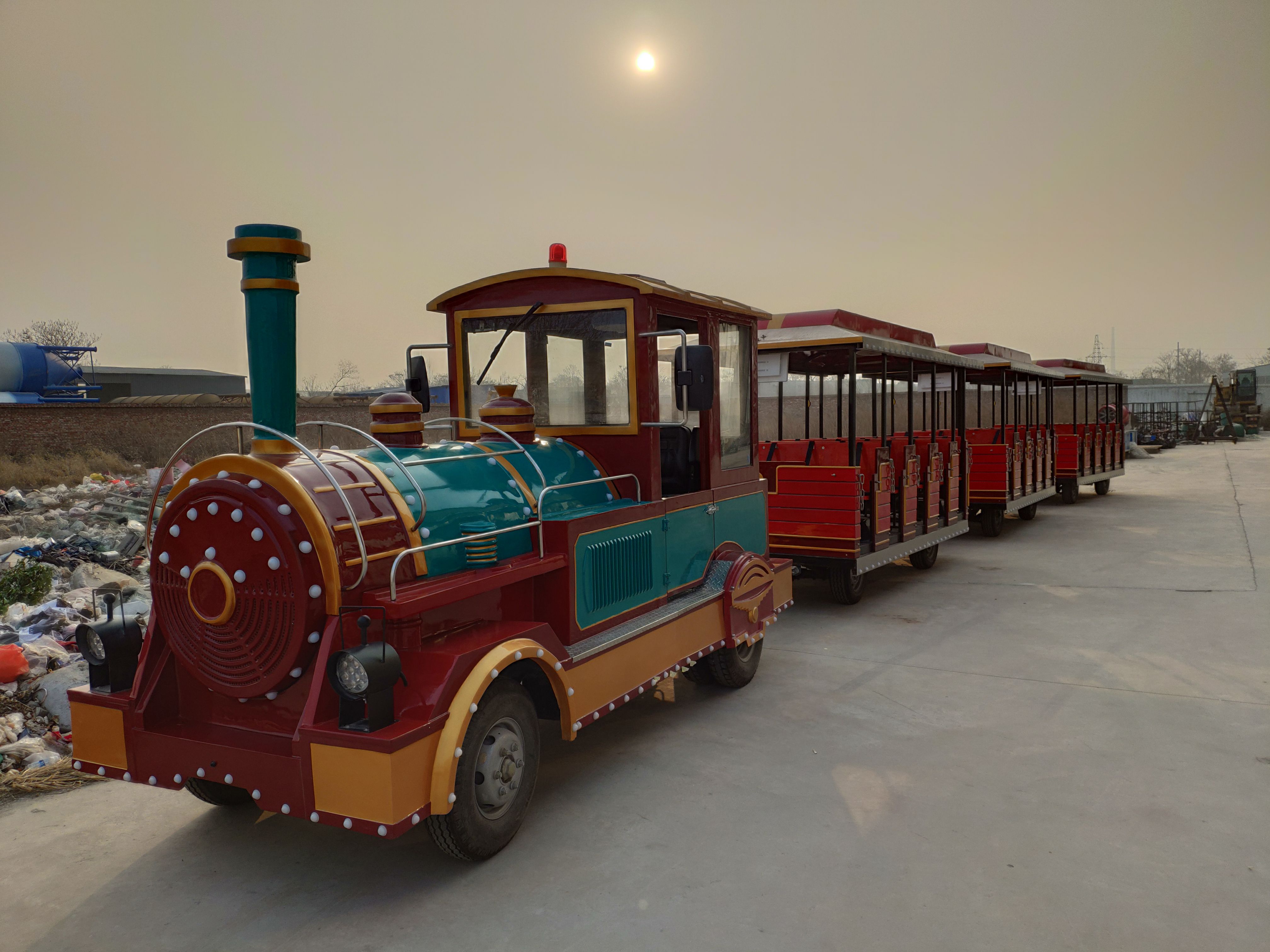

22 Person Amusement Train Ride TAB24

Rated passenger (person) 20+2

The maximum speed (km/h) 20

Minimum turning radius ≥ 7.8m

Maximum climbing grade (no load) ≤15°

Maximum braking distance (m) ≤ 2

Maximum climbing grade (full load) ≤ 10°

Minimum ground clearance (mm) ≥150

Wheelbase (carriage) 2370 (2260)

Vehicle weight (kg) first car 2450 (front)

Track (mm) (carriage) 1260 (1150)

Case size (mm) 3950*1700*2480 (without pedal)
