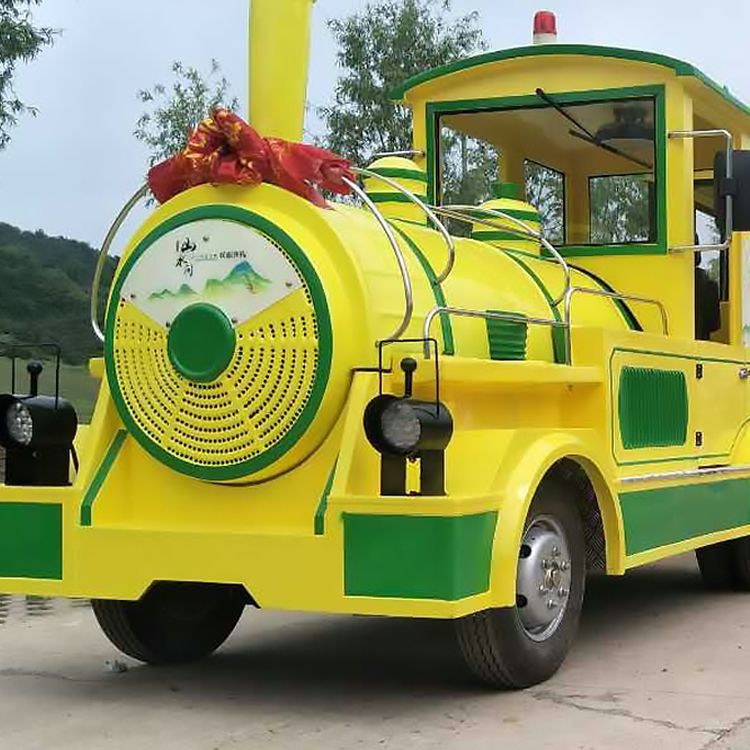

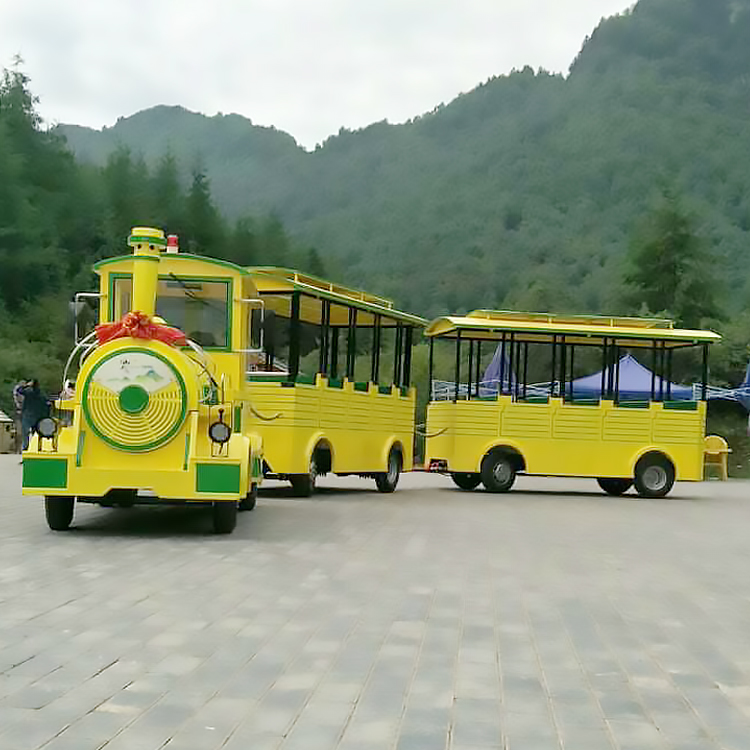

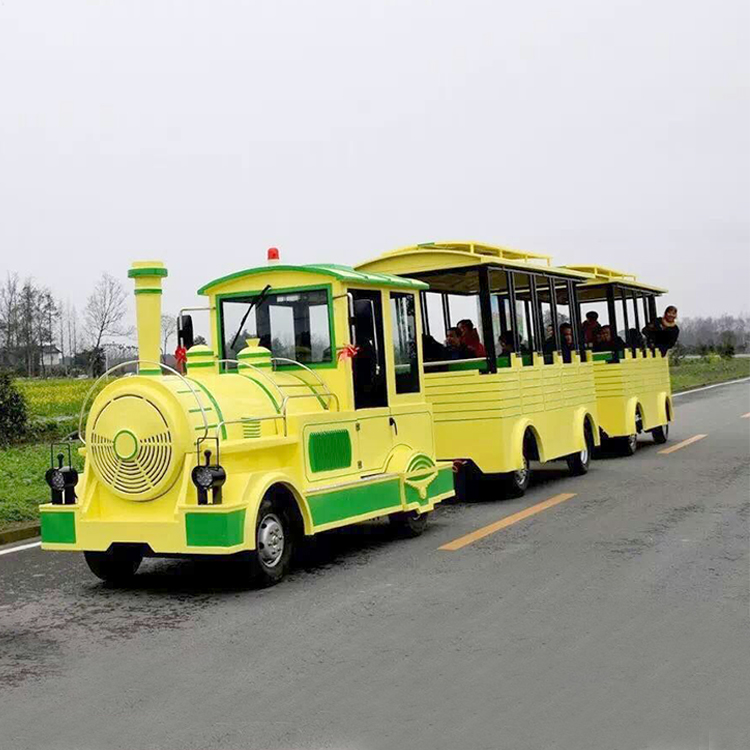

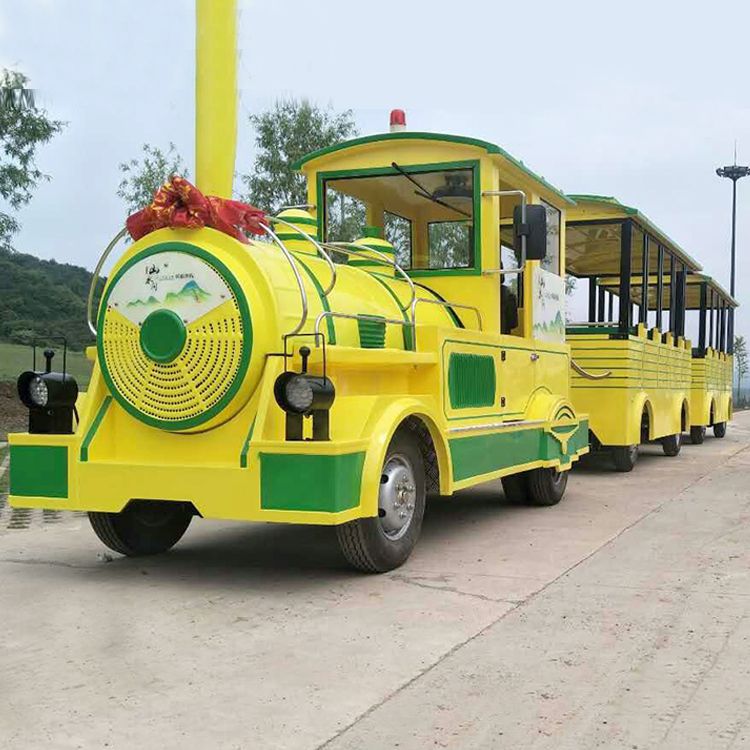

42 Seats Theme Park Trains TAB19

Rated passenger (person): 20+20+2

Maximum speed (km/h): 7

Minimum turning radius (m): ≤10

Maximum grade (no load): ≤9

Maximum braking distance (m): ≤ 2

Maximum grade (full load: %): ≤7

Minimum ground clearance (mm): ≤160

Motor: 15KW

Battery: lithium battery 72v400A

Endurance: 8-10 hours of continuous work

Vehicle weight (kg): 2300

Locomotive size (mm): 4200*2200*2400

Wagon size (mm): 4200*1700*2200

Seat: leather fabric + rebound PU

player: with voice station function

Transmission system: rear wheel drive

Steering system: rack and pinion direction machine, automatic clearance compensation function, power assist system

Brake system: front and rear double circuit hydraulic drum brake

Vehicle body: high quality carbon reinforced square tube welded frame

Car MP3 player: SV1512V MP3 playback / radio
