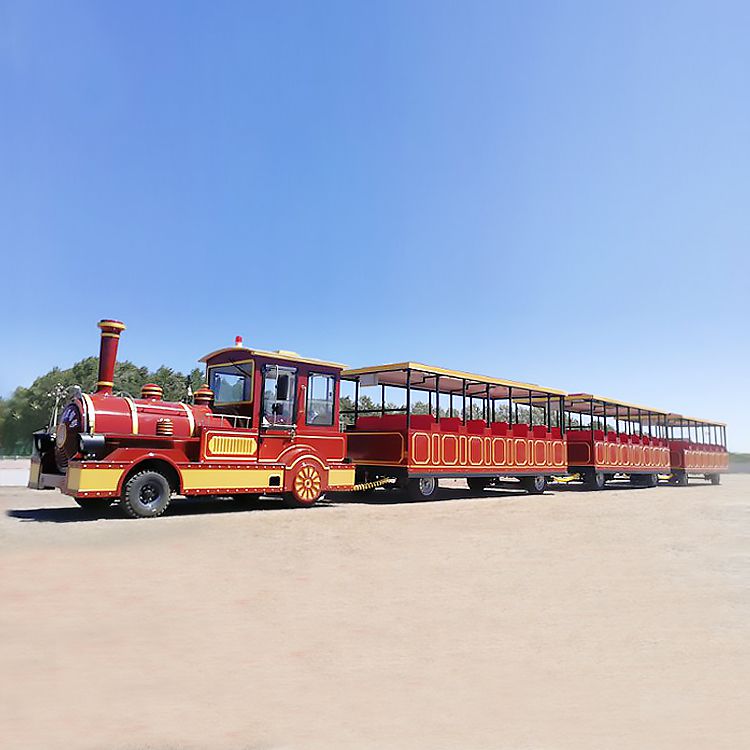

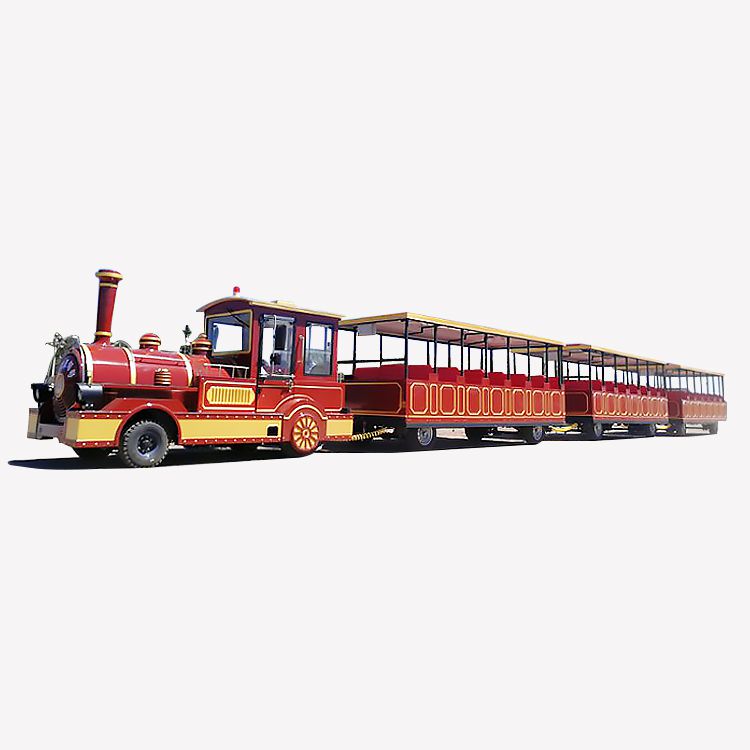

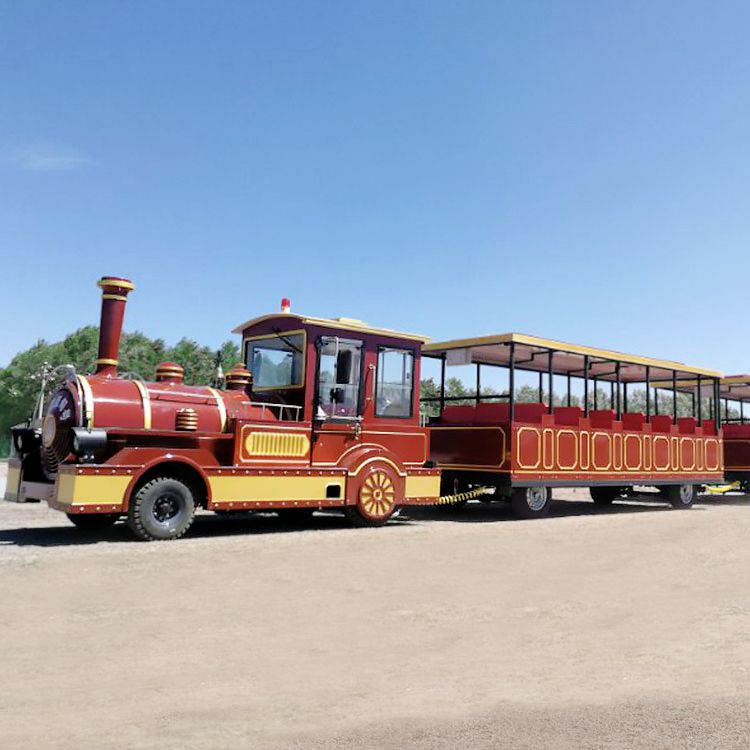

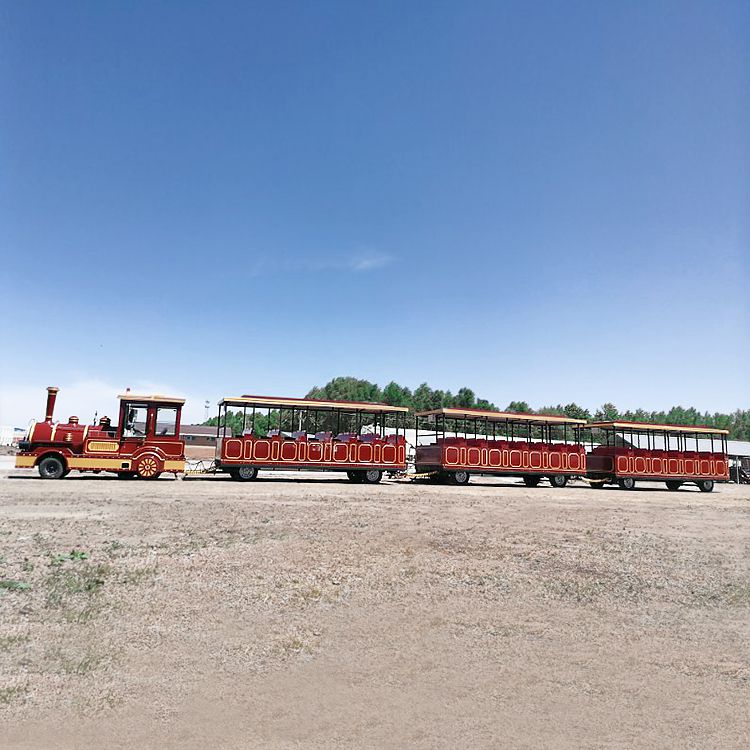

Amusement Train Riders For Sale TAD05

Rated load:86 riders

Maximum speed (km/h):20

Minimum turning radius(m)≥7.5

Mileage:120km

Maximum braking distance(m)≤2

Locomotive size(mm):4070x2020x2330

Minimum ground clearance（mm):≥125

Total weight（kg）：6880

Loco wheelbase（wagon）：2295（3755）kg

Wagon size（mm）：5500x2050x2420

Loco wheel-track（wagon）：1425（1555）mm

Link for front and back：Non - independent suspension

Tyre：China-chao-yang

Seat：FRP material

Floor：Pattern aluminum plate

Power transmission system：Rear motor drive

Steering system：Rack and pinion steering machine, automatic clearance compensation function, power assist system

Front bridge and suspension：Non independent suspension of steel plate spring

Rear axle and suspension：Non independent suspension of integral rear axle and steel plate spring

Braking system：Pneumatic brake

Tyre：China-chao-yang

Paint：The whole car adopts automobile high-grade paint, computer paint, professional spraying equipment.
